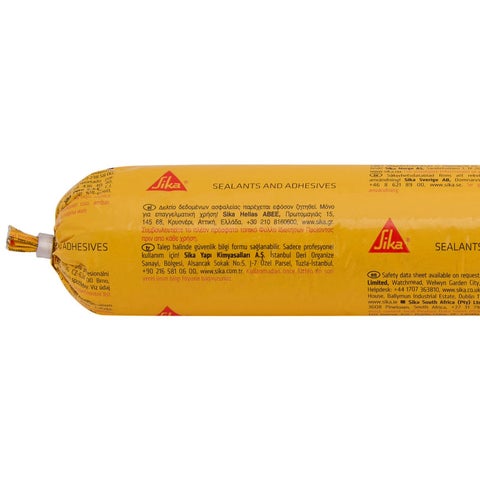

Sikaflex® Construction+
Sealant for concrete and masonry facades and rigid floor joints
Sikaflex® Construction+ is a 1-component, moisture-curing, elastic joint sealant.
- Good resistance to weathering
- Movement capability of ± 35 % (ASTM C719)
- Bubble-free curing
- Good workability
- Good adhesion to many construction substrates
- Very low emissions
Usage
Sealing joints for:- Facade elements
- Movement and connections
- Pre-cast elements
- Infill panels
- Cladding
- Curtain walling
- Floor joints
- Rigid pavements
- Interior and exterior use
- Sealing between a range of porous and non-porous substrates
Advantages
- Good resistance to weathering
- Movement capability of ± 35 % (ASTM C719)
- Bubble-free curing
- Good workability
- Good adhesion to many construction substrates
- Very low emissions
Packaging
600 ml foil pack, 20 foil packs per box
Colour
Colour range to be defined by local sales organization.
Product Details
ENVIRONMENTAL INFORMATION
- EMICODE EC1PLUS R
- LEED v2009 IEQc 4.1: Low-Emitting Materials - Adhesives And Sealants
APPROVALS / STANDARDS
- EN 15651-1 F EXT-INT CC 25 HM
- Testing Joint Sealants, ISO 11600-F, Sikaflex Construction+, SKZ, Report No. 1002
- ASTM C 920 class 35
- BS 5212 : Part 1 : 1990
Chemical base
i-Cure® Technology polyurethane
Shelf life
Sikaflex® Construction+ has a shelf life of 15 months from the date of production, if it is stored in undamaged, original, sealed packaging, and if the storage conditions are met.
Storage conditions
Sikaflex® Construction+ shall be stored in dry conditions, where it is protected from direct sunlight and at temperatures between +5 °C and +25 °C.
Density
~ 1.45 kg/L | (ISO 1183-1) |
Shore A hardness
~28 (after 28 days) | (ISO 868) |
Secant tensile modulus
~0.45 N/mm2 at 100 % elongation (+23 °C) | (ISO 8339) |
~1.10 N/mm2 at 100 % elongation (-20 °C) |
Movement capability
± 25 % | (ISO 9047) |
± 35 % | (ASTM C 719) |
Elastic recovery
~90 % | (ISO 7389) |
Tear propagation resistance
~7.0 N/mm | (ISO 34) |
Service temperature
-40 °C to +70 °C
Resistance to weathering
8 | (ISO / DIS 19862) |
Joint design
The joint width must be designed to suit the joint movement required and the movement capability of the sealant. The joint width must be a minimum of 6 mm and a maximum of 50 mm. A width to depth ratio of 2:1 must be maintained. Joint widths less than 10 mm are generally for interior connection joints or crack control joints and therefore considered as non-movement joints. Example of typical joint widths for joints between concrete elements for exterior applications if the joint sealant is classified as ±25 % movement capability according to ISO 9047, calculation according to DIN 18540.
Standard joint widths for joints between concrete elements
Joint distance [m] | Min. joint width [mm] | Min. joint depth [mm] |
2 | 10 | 10 |
4 | 15 | 10 |
6 | 20 | 10 |
8 | 30 | 15 |
10 | 35 | 17 |
Example of typical joint widths for joints between concrete elements for exterior applications if the joint sealant is classified as ±35 % movement capability according to ASTM C 719, Calculation according to ASTM C 1472-10:
Joint distance [m] | Min. joint width [mm] | Min. joint depth [mm] |
2 | 10 | 10 |
4 | 15 | 10 |
6 | 15 | 10 |
8 | 25 | 12 |
10 | 30 | 15 |
All joints must be correctly designed and dimensioned in accordance with the relevant standards and codes of practice before their construction. The basis for calculation of the necessary joint widths are:
- The type of structure
- Dimensions
- Technical values of the adjacent building materials
- Joint sealing material
- The specific exposure of the building and the joints
For joint design and calculations contact Sika® Technical Services for additional information.
Application
Sag flow
0 mm (20 mm profile, 50 °C) | (ISO 7390) |
Ambient air temperature
+5 °C to +40 °C, min. 3 °C above dew point temperature
Substrate temperature
+5 °C to +40 °C
Backing material
Use closed cell, polyethylene foam backing rods.
Curing rate
~3 mm/24 hours (23 °C / 50 % r.h.) | (CQP 049-2) |
Skin time
~65 minutes (23 °C / 50 % r.h.) | (CQP 019-1) |
Tooling time
~55 minutes (23 °C / 50 % r.h.) | (CQP 019-2) |
Consumption
Joint length [m] per 600 ml foil pack | Joint width [mm] | Joint depth [mm] |
6 | 10 | 10 |
4 | 15 | 10 |
3 | 20 | 10 |
2 | 25 | 12 |
1.3 | 30 | 15 |
SUBSTRATE PREPARATION
The substrate must be clean, dry, sound and homogeneous, free from oils, grease, dust and loose or friable particles. Sikaflex® Construction+ adheres without primers and/or activators.
However, for optimum adhesion and critical, high performance applications, such as on multi-story buildings, highly stressed joints, extreme weather exposure or water immersion, the following priming and/or pre-treatment procedures shall be followed:
Non-porous substrates
Aluminium, anodised aluminium, stainless steel, galvanised steel, powder coated metals or glazed tiles have to be cleaned and pre-treated using Sika® Aktivator-205, wiped on with a clean towel. Before sealing, allow a flash-off time of > 15 minutes (< 6 hours).
Other metals, such as copper, brass and titanium-zinc, also have to be cleaned and pre-treated using Sika® Aktivator-205, wiped on with a clean towel. After the necessary flash-off time, use a brush to apply Sika® Primer-3 N and allow a further flash-off time of > 30 minutes (< 8 hours) before sealing the joints.
PVC has to be cleaned and pre-treated using Sika® Primer-215 applied with a brush. Before sealing, allow a flash-off time of > 30 minutes (< 8 hours).
Porous substrates
Concrete, aerated concrete and cement based renders, mortars and bricks shall be primed using Sika® Primer-3 N applied with a brush. Before sealing, allow a flash-off time of > 30 minutes (< 8 hours).
For more detailed advice and instructions please contact the local Sika Technical Services Department.
Note: Primers are adhesion promoters. They are neither a substitute for the correct cleaning of a surface, nor do they improve the strength of the surface significantly.
CLEANING OF TOOLS
Clean all tools and application equipment immediately after use with Sika® Remover-208 and/or Sika® TopClean T. Once cured, residual material can only be removed mechanically.
