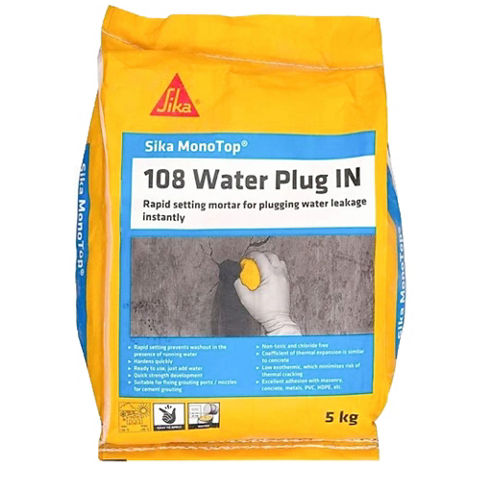

Sika MonoTop®-108 Water Plug IN

Rapid setting mortar for plugging water leakage instantly

Sika MonoTop®-108 Water Plug IN is a ready to use, rapid-setting, waterproof cement mortar for stopping water leaks in concrete and masonry.

  • Rapid setting prevents washout in the presence of running water
  • Hardens within ~2–3 minutes (+27 °C)
  • Ready to use, just add water
  • Quick strength development
  • Non-toxic and chloride free
  • Coefficient of thermal expansion is similar to concrete
  • Low exothermic, which minimises risk of thermal cracking
  • Excellent adhesion with different materials like masonry, concrete, metals, PVC, HDPE, etc.
Product Data Sheet Show all documents

Usage

  • To instantly seal negative water pressure leaks through cracks, gravel pockets and casting joints
  • To instantly seal water leakage during waterproofing of water tanks, basements and sunken pits etc.
  • Instant sealing of water drainage outlets during waterproofing treatments
  • Instant sealing of leakages in concrete/masonry structures
  • As plugging mortar for fixing nozzle / grouting ports during injection grouting


Advantages

  • Rapid setting prevents washout in the presence of running water
  • Hardens within ~2–3 minutes (+27 °C)
  • Ready to use, just add water
  • Quick strength development
  • Non-toxic and chloride free
  • Coefficient of thermal expansion is similar to concrete
  • Low exothermic, which minimises risk of thermal cracking
  • Excellent adhesion with different materials like masonry, concrete, metals, PVC, HDPE, etc.

Packaging

1 kg pouch, 5 kg bags

Colour

Lump free powder / Grey colour

Product Details

Product Information

Chemical base

Cement and special additives

Shelf life

12 months from date of production

Storage conditions

The product must be stored in undamaged and unopened, original sealed packaging, in dry conditions at temperatures between +10 °C and +35 °C and protected from direct sunlight. Protect from moisture / frost.
Technical Information

Compressive strength

Curing time

Compressive strength

6 hours

~8 N/mm2

24 hours~10 N/mm2

All values are at curing temperature +30 °C, water / powder = 0.27



Application

Application Information

Mixing ratio

1 kg pouch

0.26–0.28 L of water

5 kg bag

1.30–1.40 L of water

Note:

The mixing ratio must be adjusted based on site conditions and consistency required.

Fresh mortar density

~2.1 kg/L (at +27 °C, water / powder = 0.27)

(EN ISO 2811-1)

Ambient air temperature

+10 °C min. / +40 °C max.

Substrate temperature

+10 °C min. / +40 °C max.

Initial set time

~150 seconds (at +27 °C, water / powder = 0.27)

(EN 196-3)

Note:

Setting times will be affected by ambient, substrate, water and product temperatures.

Note:

Setting times can be changed by varying the amount of water.

Final set time

~200 seconds (at +27 °C, water / powder = 0.27)

(EN 196-3)

Note:

Setting times will be affected by ambient, substrate, water and product temperatures.

Note:

Setting times can be changed by varying the amount of water.
Application steps

SUBSTRATE PREPARATION

  • Widen and deepen the leakage area in dove-tail fashion by approximately 20 mm using a chisel to allow a small amount of product to be packed into the void and optimise the bond to the substrate.
  • Area of application to be cleaned mechanically to make it free from loosely adhering particles, laitance, oil, grease, etc.

MIXING

  1. ​​​​​​Pour a small amount of clean water in a suitable mixing container.
  2. Add required amount of powder to the water.
  3. Stir the mix together quickly with a trowel, spatula or gloved hand to form a mortar which can be applied before the initial setting time.

APPLICATION

  1. Mould the mortar by gloved hand for a few seconds into a plug.
  2. Apply immediately into the prepared void pressing firmly until the mortar has set.
  3. Remove excess material from the substrate by scraping it away with a spatula or trowel after the sealing is complete.
  4. In case part of putty is washed away due to water pressure, repeat the application till leakage stops fully.
  5. In case of excessive water pressure, drill holes around main leakage point to reduce water pressure and attack main leakage point first and subsequently seal/patch other drill holes.
  6. Depending on the setting time, a wet sponge can be used to smooth the surface of the plug.

CLEANING OF TOOLS

Clean all tools and application equipment with water immediately after use. Hardened material can only be mechanically removed.
